◆Features:

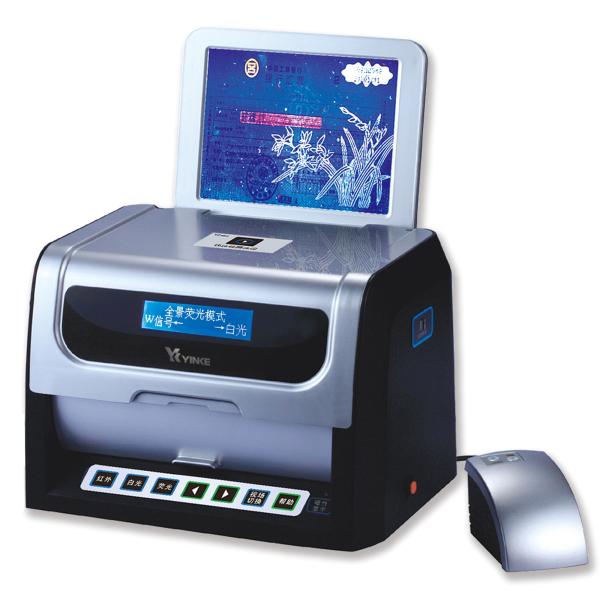

•8inch digit LCD display, Sony brand camera.
•3 group video modes setting: full image, 40 times magnification
and 80 times magnification. Spectral Features Analyzer M800 can be
magnified 80.
•Output interface: computer (USB2.0) , TV, projector（Video output）
•Boot Screen optional.
•Operating instruction information can be displayed in LCD panel in
front of device.
•Range of combined control modes such as IR, UV, white light,
transmitted white light, magnetic etc.
•Fast verification function on top of device: 1:1/1:40/1:80
(connected with M800) IR, IR transmit light, lateral IR, UV, white
light. ◆Modes:
•Full Image: white light, lateral light, transmitted white light,
IR, lateral IR, IR transmitted light, UV.
•Local 40 times magnification Image: white light, lateral white
light, transmitted white light, IR, lateral IR, IR transmitted
light, UV.
•Micro 80 times magnification Image(connected with M800): White
light, lateral light, IR, lateral IR, UV, blue light.◆Functions:
•White Light: it verifies micro texts, marks and other features.
•Lateral Light: it verifies concavity printing, watermark concavity
and fibers features etc.
•optical variable: it verifies optical variable ink features etc.
•Transmitted White Light: it verifies watermarks and security
threads.
•Ultraviolet( UV): it verifies images and fibers.
•IR: it discovers alter, mosaic image with IR metamericink.
•Magnetic: it verifies special protective texts, marks, and images
made by ferromagnetic ink.
